RK410 Industrial Fixed Barcode Scanner | High-Density Sensor & DPM Technology

Product Categories
Shenzhen Rakinda Technology Development Co., Ltd.
Contact Now

RK410 Industrial Fixed Barcode Scanner | High-Density Sensor & DPM Technology

Brand Name : RAKINDA

Model Number : RK410

Certification : CE,CF,RoHS

Place of Origin : Shenzhen, Guangdong, China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : Western Union, T/T, Paypal

Supply Ability : 100 PCS/ week

Delivery Time : Within 5 working days after receiving the balance

Packaging Details : Normal craft paper and foam

Support : 24/7

Mounting Height : 190cm-200cm

Tf Card : 8G

Focal Length : 3.18mm

Power Supply : DC24V 2A

Operating Temperature : 5℃-50℃

Record Capacity : 150000

Speed : Fast

Storage : RAM 2G，ROM 16G

Contact Now

Discover the RK410 industrial barcode scanner with 1.3MP high-density sensor, advanced DPM algorithms, and TCP/IP connectivity. Perfect for IoT, machine vision, and production lines. IP65-rated & CE/FCC certified.

Key Features:
- 1.3MP High-Performance Sensor: Achieves precise scanning of 1D/2D barcodes, including challenging DPM (Direct Part Marking) codes.
- Industrial-Grade Durability: IP65 sealing ensures reliable operation in harsh environments (-40℃ to +70℃ storage).
- Smart Light Source Adjustment: Automatically adapts to reflective surfaces, curved codes, and low-contrast labels.
- Flexible Connectivity: Built-in Ethernet (TCP Client/Server, ModbusTCP) and RS232 interfaces for seamless IoT integration.

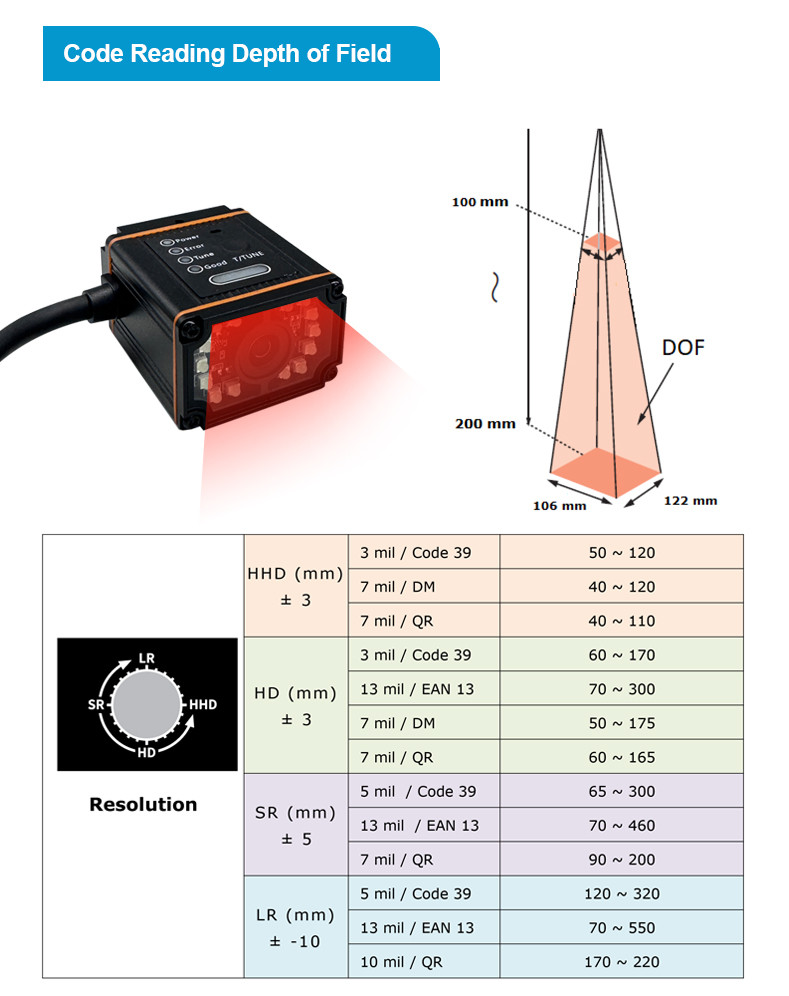

- Mechanical Focus Modes: Choose HD (high density), SR (standard range), or LR (long range) for optimal scanning accuracy.

Parameters

Performance Characteristics Image Sensor 1 0 8 0 x 1 2 8 0 ( 1 . 3 M )
Field of View 29 ° ( H ) x 34 ° ( V )
Light Source Red LED
Aiming 650 nm Laser

Resolution

 HHD LR
1D : ≥3 mil ; 2D : ≥7 mil 1D : ≥5 mil ; 2D : ≥10 mil

Decode

Capabilities

 1D UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 ,Code 93 , Code 32 ,Code11 , Codabar , Plessey , MSI , Interleaved 2 of 5 , IATA 2 of 5 , Hong Kong 2 of 5 , USPS Intelligent Mail , Pharmacode , RSS-14 , RSS-14 Expanded , RSS-14 Limited ,Composite Code-A , Composite Code-B , Composite Code-C
2D PDF 417 , Micro PDF 417 , Data Matrix , QR , Micro QR , Aztec , Maxi Code

Physical

Characteristics

 Dimension (mm) 44(W)× 53(D)× 29(H)
Weight About 125g, without other accessories
Interfaces Ethernet(TCP client/TCP server/Modbus TCP),RS232
Input Voltage 12 - 2 4 VDC
Output Signal 1 Op to - isolated Input ( NPN / PNP / Relay )
Input Signals 2 Op to - isolated output(Good; NG )
Sealing IP 65

Reliability

Storage

temperature

 -40℃~+70℃
Operating temperature -10℃~+50℃

Relative

humidity

 5%-95% ( no condensation )

Static

Protection

 ±12KV (air discharge), ±8KV (direct discharge)
Drop height 1.5 meters to concrete floor

RK410 Industrial Fixed Barcode Scanner | High-Density Sensor & DPM TechnologyRK410 Industrial Fixed Barcode Scanner | High-Density Sensor & DPM TechnologyRK410 Industrial Fixed Barcode Scanner | High-Density Sensor & DPM TechnologyRK410 Industrial Fixed Barcode Scanner | High-Density Sensor & DPM TechnologyRK410 Industrial Fixed Barcode Scanner | High-Density Sensor & DPM Technology
